Custom Crosshead for Lifting in the Oilfield Industry

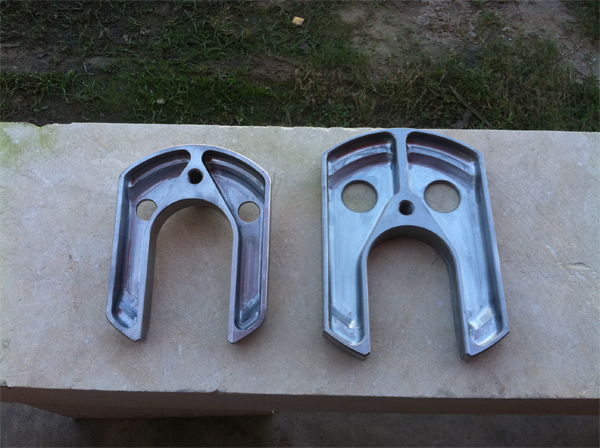

Westfield Machine, Inc. has consummate experience for manufacturing components that provide longevity in the most demanding environments. We manufactured the custom crosshead components pictured here for use in a lifting application in the oilfield industry. Constructed from A633 steel plate, we utilized our 4-axis milling equipment, which enabled us to create tool paths for cutting the complex shape at high speed in this tough material with no loss of accuracy. Featuring overall dimensions of 8.0” in width, 12.0” in length, and 1.5” in thickness, we machined the parts with a 125 surface finish.
We conducted final inspections in accordance with the sector-specific quality standards of the petroleum industry, and verified that we met the ±.005” tolerance requirements. The customer was assured of receiving components that would provide zero-fail performance in tough oilfield conditions.
For more details about this project or our expert machining services, contact us today.
Custom Crosshead for Lifting Project Highlights
- Capabilities Applied/Processes
Primary:
- Turning
- Milling
- Tapping
- Equipment Used to Manufacture Part
CNC Machine
Lathe
- Overall Part Dimensions
Width: 8″
Length: 12″
Thickness: 1 ½”
- Tightest Tolerances
±.005 in.
- Material Used
A633 Steel Plate Grade C
- Material Finish
125 Surface Finish
- In Process Testing/Inspection Performed
Final Inspection
- Industry for Use
Oilfield
- Volume
4
- Delivery/Turnaround Time
6 weeks
- Delivery Location
Houston, TX
- Standards Met
Customer Specifications, 2D CAD Drawing
- API Spec Q1
- API ISO 9001:2015
- API QMS
- Product Name
2200 Crosshead Used For Lifting
