Large Component Structural Fabrication Services
Westfield Machine, Inc. has been servicing customers in the oilfield and gas turbine industry for over 30 years-providing personalized customer service with a hands-on approach to custom fabrication. We are a family owned operation that delivers turnkey solutions and builds large scale structural components for customers across Texas and the Gulf region.
Westfield Machine, Inc. utilizes various fabrication methods including: brazing and welding from AWS certified welders, forming (bending, punching, shearing, and notching), as well as CNC machining. For prototypes through large scale productions, materials spanning structural, carbon, stainless steel, cast iron, Hastelloy, and Inconel, as well as in raw form which include sheet, tube, plate, H, and I-beam, and C-channel. Fabrication can be performed on raw materials up to .5″ in thickness, 10′ in length, 5′ in width and height, and up to 15 tons. On-site assembly is performed by qualified ironworkers, with typical turnovers of 4 to 6 weeks as well as rush service. Finishing services such as powder coating, painting, and galvanizing is also available-making Westfield Machine, Inc. a true single source solution for all of your structural fabrication projects.
To learn more about what Westfield Machine, Inc. can do for you see the table below or contact us directly.
Large Component Structural Fabrication Project Showcase

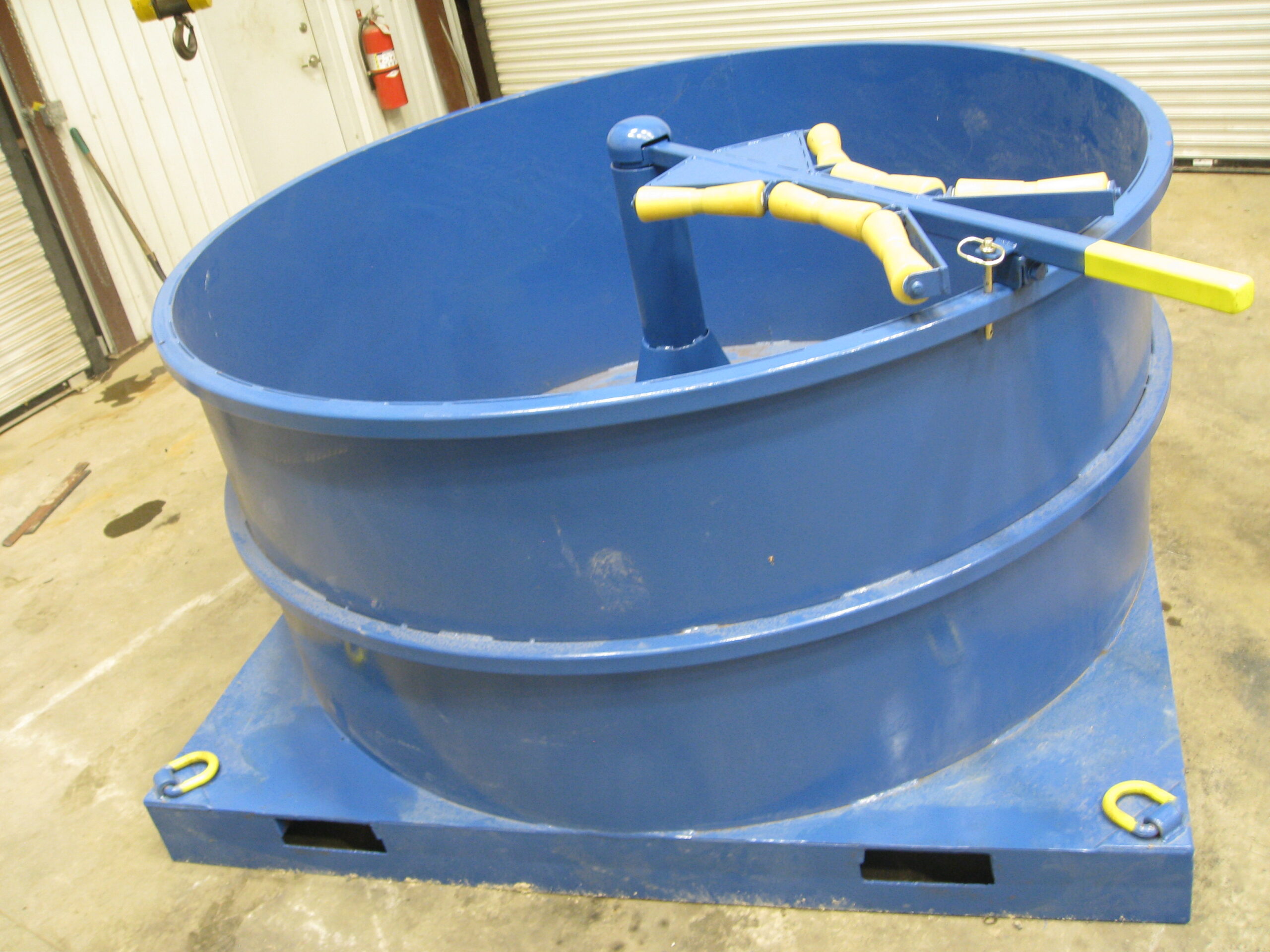

- Custom Aluminum Spir-o-lizer for the Oilfield Industry
- Custom Stabbing Guides & Body Components for the Oilfield Industry
- Custom Drive Gear Sets for the Construction Industry
- Custom Hydraulic Parts for the Oilfield Industry
Large Component Structural Fabrication Capabilities
- General Capabilities
Structural
Large Components
Heavy Components
- Fabrication Method
-
Welding (Wire, Heliarc®, Stick)
Brazing
Shearing
Bending
IronworkerPunching
Notching
Sawing
CNC Machining Services
- Materials
-
Carbon Steel
Stainless Steel
Aluminum
Cast IronHastelloy®
Inconel®
Structural Steel
- Raw Material Forms
-
Sheet
Tubing
Plate
AngleH-Beam
I-Beam
C-Channel
- Material Thickness
Up to 1/2 in.
- Punching Thickness
Up to 3/8 in.
- Hole Diameter
Up to 1 in.
- Length
Up to 10 ft.
- Width
Up to 5 ft.
- Height
Up to 5 ft.
- Weight
Up to 15 tons
- Tolerance (+/-)
.125 in.
- Fabricated Products
-
Toolboxes
Crates
Skids
Fixturing
CarriersSafety Products
Truck Beds
3 Part Tanks
Storage Box
Pump Skids
- Additional Services Provided
Powder Coated
Painted
Galvanized
- Production Volume
Prototype to Large Scale Production Volume Runs
- Typical Lead Times
2 to 4 weeks
Rush Service Available
Additional Information
- Industries Served
Oilfield
Gas Turbine
- Intended Applications
-
Draw Work Parts for Oil Rigs
Blow Out Preventer (BOP)
Risers
Flow Crosses
Recalibration on FixturingInspection Fixtures
Flanges
Double Lead Threading
Subseat Bonnets
Pipe Handling
- Industry Standards Met
-
API Spec Q1
API ISO 9001:2015Mil-Spec
ASTM
AWS
- File Formats Accepted
-
SolidWorks
AutoCADGibbsCAM
